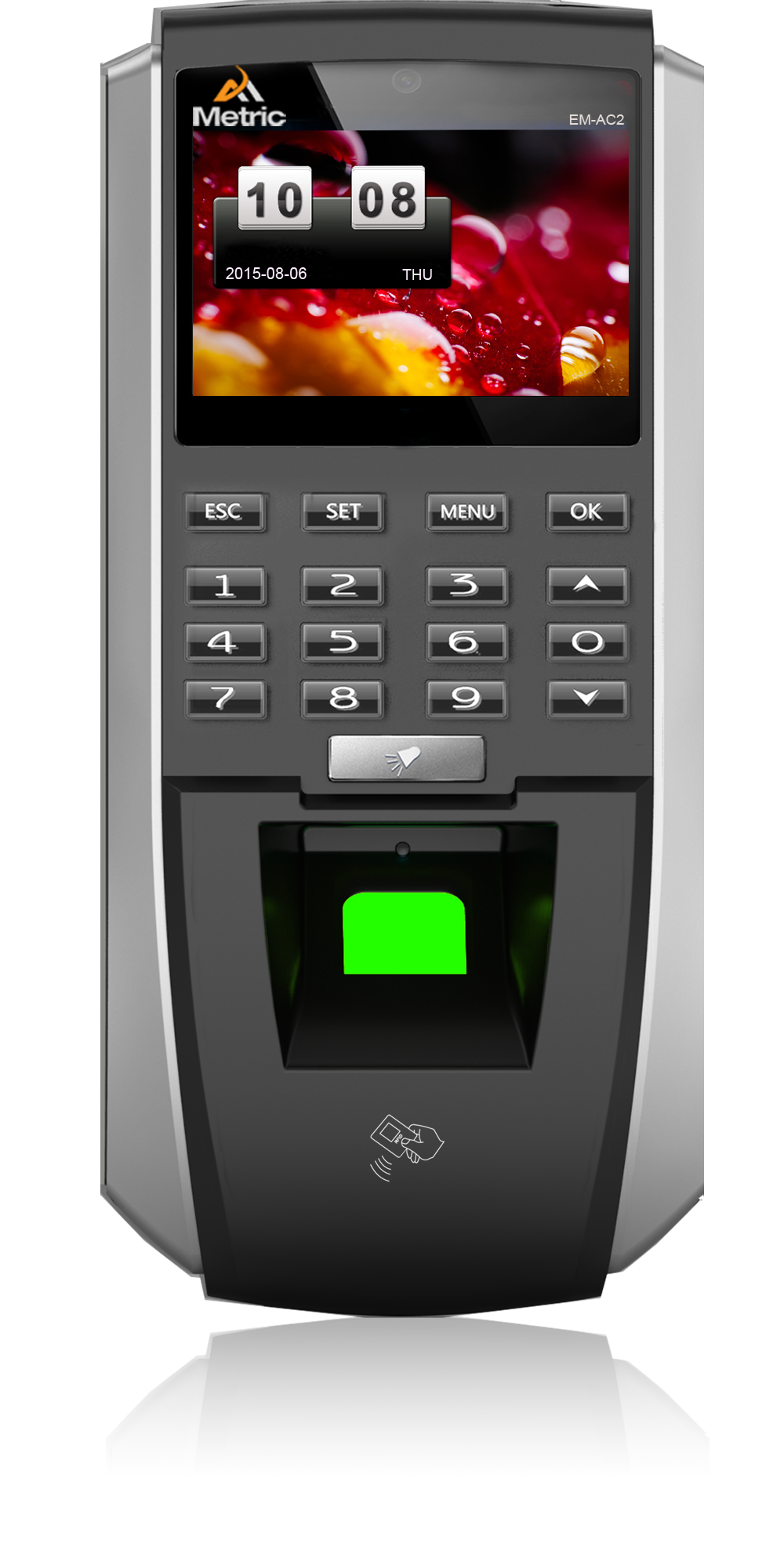

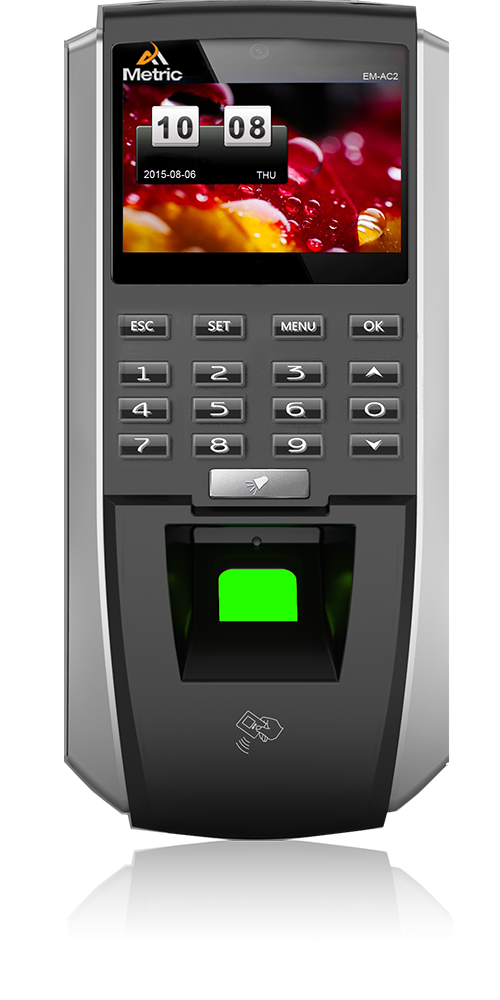

EM-AC2

Functional Parameters:
Hardware Platform.

CPU: 32 bit CPU
Fingerprint Scan: optical fingerprint scan
Read Card Function: input RFID read card mode option
Communication: USB, TCP/IP, RS-485.W
Power interface: (9-12V-GND)
Internal, external WG26/34 input.
Door relay output (com, no, no)
Alarm relay output (com, no, NCI)
Connection interface :
WG26/34 output
Open PU
Door magnetic switch input
Ring OU
Anti- PA
Camera: support real-time photo function (optional)
IF Card: support (storage photo)
U disk: support
Prompt: voice prompt
Working voltage: DC12V
Working Humidity (RH): 20% – 80%
Working temperature: 10 degree – +60 degree
Access control mode:
support standalone mode
one reader mode/multi door mode

Software Function:
Registration Capacity: 3000 fingerprint – 3000 card/3000p
Identification mode:
Fingerprint, password and combination.
Double fingerprint identification mode comb.

Language: support multi language
Chinese, traditional Chinese, English by WGc
Access Control: 50 time zones, setting time zone on identification mode, anti-submarine function, real time access record of access terminal function.
Control multi door function: support double fingerprint or multi fingerprint combination access management function timing.
Alarm function: control the 5 doors of teardown alarm function the door timeout alarm with fingerprint reader mainframe connect 4 fingerprint reader by RS-485.

Face Algorithm
Algorithm version: finger V6.1
FAR/FRR: 0.00001/011%
Matching Speed: 1.0 second registered 3000 fingerprints
Intelligent updating: support
Fingerprint identification mode: support 1: N, 1 :1, double fingerprint or multi fingerprint combination identification mode Size L95*W48*H250MM.
